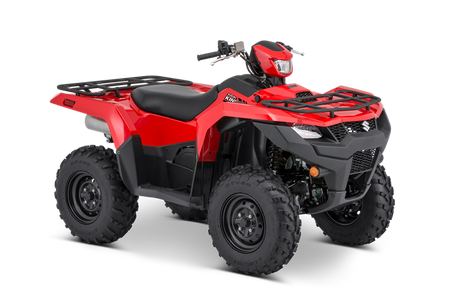

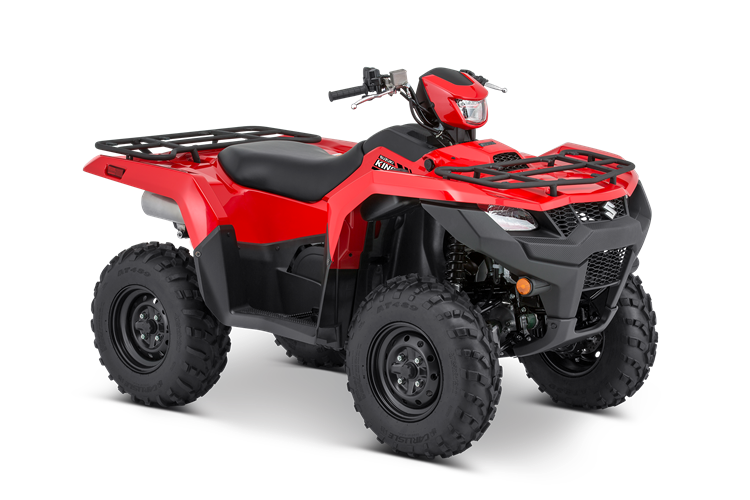

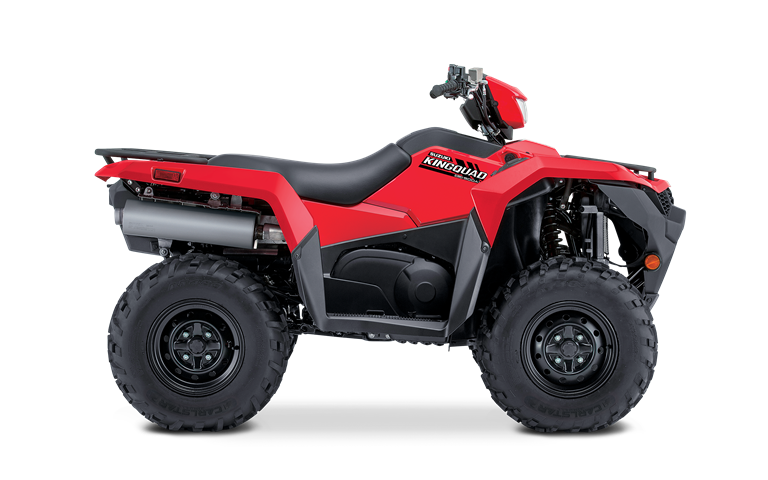

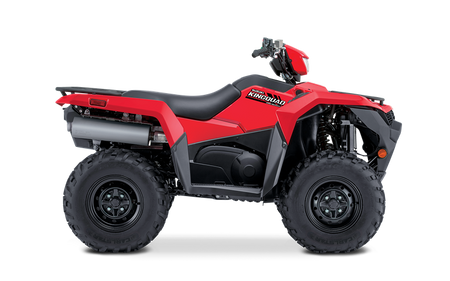

2024 KingQuad 500AXi Overview
The KingQuad 500AXi is not just an ATV, it’s a KingQuad ATV.
Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting and is ready for you to join its history. The 2024 Suzuki KingQuad 500AXi helps tackle challenging terrain with the capabilities that only a KingQuad possesses.
FEATURES
Bold, angular styling, and a relaxed riding position
Generous towing capacity and fully independent suspension helps you take on any chore
Torque-rich, EFI-fed engine, and QuadMatic™ transmission with effective engine braking
Fender- and handlebar-mounted headlights, LED tail light plus full LCD instrument panel
Rugged steel cargo racks lets you set up your KingQuad for any mission
The powerful 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power.
The engine’s head and cylinder are canted forward for a low center of gravity, resulting in reduced engine height and lower seat height. The engine also features a balancer shaft for smooth operation.
The compact four-valve cylinder head has large intake valves and straight intake ports for superb cylinder charging efficiency. Screw and nut valve lash adjusters simplify maintenance.
A lightweight aluminum cylinder uses SCEM (Suzuki Composite Electrochemical Material) coating for excellent heat transfer and ring sealing, resulting in superb combustion chamber efficiency.
Advanced Suzuki Fuel Injection improves throttle response and fuel efficiency while delivering power consistently across the full rev-range, and improves engine starting in all conditions.
The KingQuad easily achieves US emissions compliance, including California models that conform to the state’s stringent evaporative emissions standard (eligible for green sticker registration).
High-capacity aluminum radiator with large diameter, thermostatically-controlled cooling fan provides stable engine operating temperature.
The QuadMatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during descents.
A compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious 4WD traction.
Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when getting out of mud.
To increase rider comfort, make the ATV easier to ride on any terrain, and increase towing capacity, the KingQuad’s frame has thick-wall tubes and reinforced brackets in key areas.
The base steering characteristics are now tuned to an “under-steer” condition for reduced effort and tighter turning in tight conditions. This permits higher, more comfortable handlebars to be used.
The bold, angular bodywork features high-clearance fenders that offer great protection for the rider from flying debris. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service.
Riders can choose between Suzuki legacy bodywork colors of Flame Red, or Terra Green.
Independent double A-arm front suspension (6.7 inches of wheel travel) includes large diameter, gas-charged shock absorbers with five-way spring preload adjustment.
Fully independent, A-arm/I-beam rear suspension with 7.7 inches of wheel travel includes large diameter, gas-charged shock absorbers with five-way spring preload adjustment.
A large diameter rear stabilizer bar with compliant bushings helps control body movement while reducing shocks to the rider.
The dual hydraulic front disc brakes combine high-friction brake pad material, fluid lines, and a lever ratio to provide optimal braking performance.
The sealed, multi-plate rear brake system’s foot brake lever ratio provides great rider control. The rear brake’s clutch-type design means high durability, reduced unsprung weight, and low maintenance.
High traction 25-inch Carlisle tires are mounted on strong steel wheels with a durable, powder-coated matte-black finish.
Suzuki's plush T-shaped seat delivers rider mobility during spirited or difficult terrain riding.
Polyethylene skid plates provide protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.
Full floorboards with integrated raised footpegs help shield the rider from the elements
The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high and low settings) are part of the KingQuad's distinctive bodywork.
The low-draw and bright LED taillight helps make the ATV visible in dark conditions while conserving power.
The multi-function instrument panel has improved appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, driving range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.
High-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use. A sealed 12V accessory outlet is standard.
The large 4.6-gallon (17.5 L) fuel tank is positioned for a low center of gravity. It includes a vacuum-operated petcock and a ratchet-style filler cap (which prevents overtightening so it can be easily unscrewed for refilling).
A large 4.0-liter storage compartment is centrally located at the rear of the ATV adjacent to the 4.0-liter left-side compartment, providing generous cargo capacity. The 2.8-liter water-resistant front storage compartment includes an easy-access screw-on cap.
Full floorboards with integrated raised footpegs help provide protection.
The rugged front and rear steel-tube cargo racks have wrinkle paint finish for durability and scratch resistance..
The cargo racks can accept Suzuki’s accessory high-impact plastic carrier covers that shield cargo from wear while enhancing the quad’s appearance. These optional covers are easily removable for mounting of Suzuki accessories or other gear directly to the cargo racks.
The standard receiver-type trailer hitch mount makes it easy to select the type of equipment you want to move with the KingQuad’s generous towing capacity (up to 1322 pounds).
The standard winch-ready mounts and wire conduit make winch installation simple.
12-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*
*Subject to separate coverage for certain parts and the exclusions and limitations described in the New ATV Limited Warranty.
A variety of Suzuki Genuine Accessories are available, including carrier covers, winches, windshield, front and rear bumpers, a quick-release snow plow, aluminum skid pans, cargo rack extensions, utility box, and more.
Minimum Operator Age: 16 Years Old
SPECIFICATIONS
- Engine 493cc (30.1 cubic in.), 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
- Bore x Stroke 87.5 mm x 82.0 mm (3.40 in. x 3.20 in.)
- Compression Ratio 9.9:1
- Fuel System Suzuki electronic fuel injection
- Starter Electric
- Lubrication Wet sump
- Transmission Automatic variable ratio (V-belt), with high/low-range and reverse
- Clutch Dry shoe, automatic, centrifugal type
- Driven Wheels 2WD, 4WD and 4WD Differential Lock
- Final Drive Shaft drive
- Suspension Front Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
- Suspension Rear Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
- Brakes Fron tDisc brakes, twin rotors
- Brakes Rear Sealed oil-bathed multi-disc
- Tires Front AT25 x 8-12**, tubeless type x 2
- Tires Rear AT25 x 10-12**, tubeless type x 2
- Fuel Tank Capacity 17.5 L (4.6 US gal.)
- Color Terra Green or Flame Red
- Ignition Electronic ignition (transistorized)
- Headlight 12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
- Tail Light LED
- Overall Length 2150 mm (84.6 in.)
- Overall Width 1215 mm (47.8 in.)
- Overall Height 1285 mm (50.6 in.)
- Wheelbase 1285 mm (50.6 in.)
- Ground Clearance 260 mm (10.2 in.)
- Seat Height 920 mm (36.2 in.)
- Curb Weight 315 kg (695 lb.), 316 kg (697 lb.) CA model
- Warranty 12-month limited warranty
- Extension Longer coverage periods with other benefits are available through Suzuki Extended Protection (SEP)
