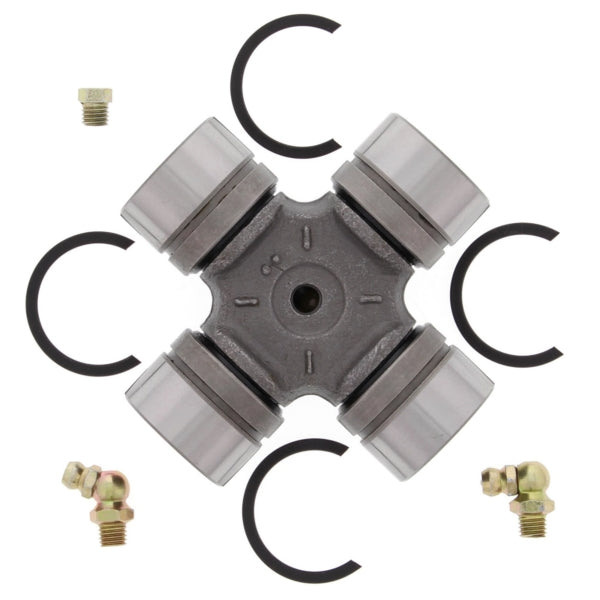

All Balls Universal Joint (295874)
All Balls Universal Joint (295874)
All Balls Universal Joint (295874)
All Balls Universal Joint (295874)
All Balls

All Balls Universal Joint (295874)

En stock - 10 articles disponibles
Unité de gestion de stock: 295874
(0)
$59.99
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

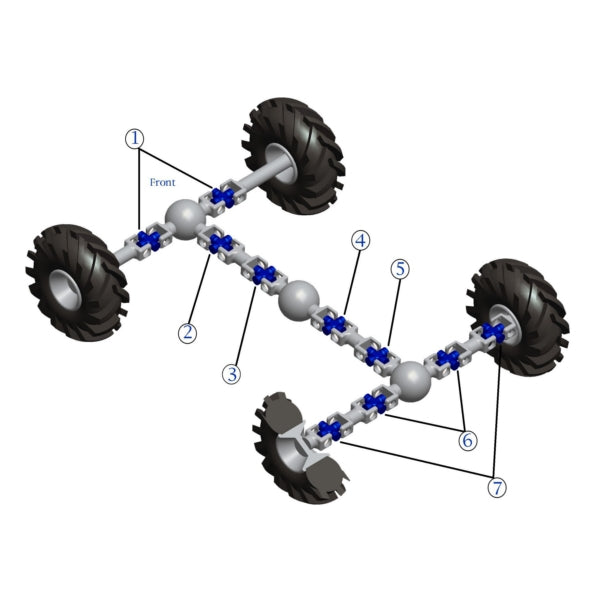

Notes for utility Models:
  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.

    Compatibilité Véhicule

    15 Vehicles
    Type Make Model Year
    • ATV KAWASAKI KRT800JNF Teryx4 (US)2022
    • ATV KAWASAKI Mule Pro-MX2025
    • ATV KAWASAKI Mule Pro-MX EPS2019-2025
    • ATV KAWASAKI Mule Pro-MX EPS SE2024
    • ATV KAWASAKI Teryx 800 EPS2014-2024
    • ATV KAWASAKI Teryx 800 LE EPS2014-2021
    • ATV KAWASAKI Teryx S 8002024-2025
    • ATV KAWASAKI Teryx S 800 LE2021-2025
    • ATV KAWASAKI Teryx4 7502012-2013
    • ATV KAWASAKI Teryx4 750 EPS2012-2013
    • ATV KAWASAKI Teryx4 800 EPS2014-2023, 2025
    • ATV KAWASAKI Teryx4 800 LE EPS2014-2021
    • ATV KAWASAKI Teryx4 S 800 EPS (US)2021
    • ATV KAWASAKI Teryx4 S 800 LE EPS2023-2025
    • ATV KAWASAKI Teryx4 S 800 SE EPS2023-2025
