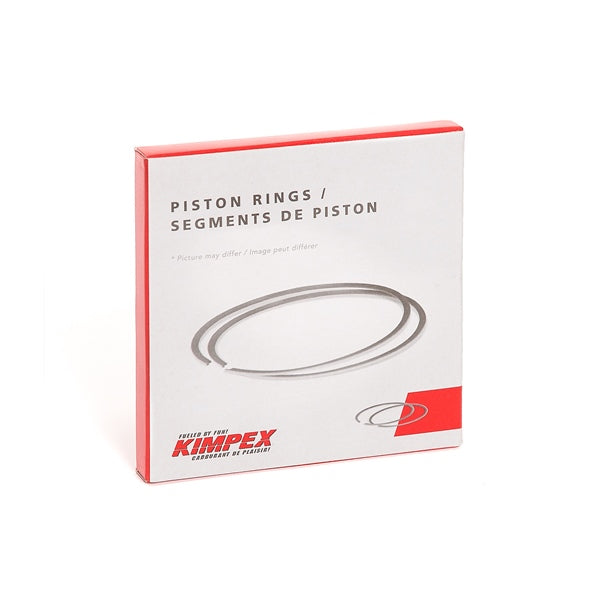

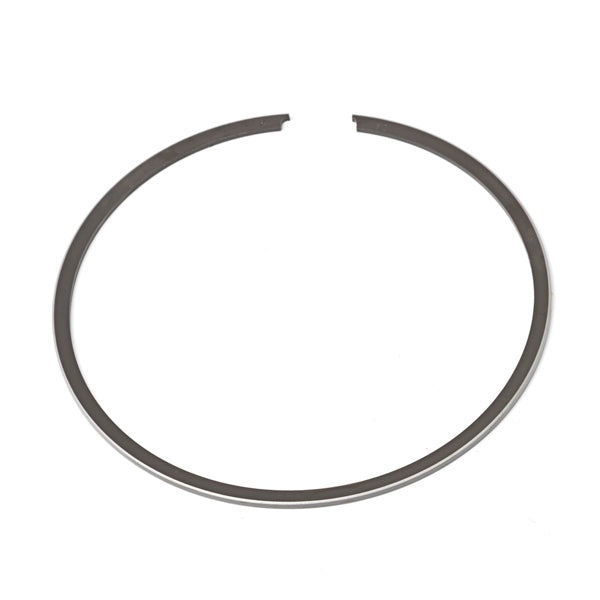

Kimpex Piston Replacement Ring Set (982064)
Kimpex Piston Replacement Ring Set (982064)
Kimpex Piston Replacement Ring Set (982064)
Kimpex Piston Replacement Ring Set (982064)
Kimpex

Kimpex Piston Replacement Ring Set (982064)

En stock - 4 articles disponibles
Unité de gestion de stock: 982064
(0)
$24.99
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Piston and Ring Installation:
  • Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
  • Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
  • Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
  • Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
  • Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
  • Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.

Compatibilité Véhicule

89 Vehicles
Type Make Model Year
  • SNOWMOBILE SKI-DOO Formula Deluxe 600 ES/R L/C 121"2000-2001
  • SNOWMOBILE SKI-DOO Formula Deluxe 600 GSE ES/R L/C 121"2001
  • SNOWMOBILE SKI-DOO Formula Z 600 L/C 121"2000
  • SNOWMOBILE SKI-DOO Grand Touring 600 ES/R L/C 136"2000-2001
  • SNOWMOBILE SKI-DOO Grand Touring 600 GS ES/R L/C 136"2002
  • SNOWMOBILE SKI-DOO Grand Touring 600 SE ES/R L/C 136"2002-2003
  • SNOWMOBILE SKI-DOO Grand Touring 600 Sport Carb REV-XP ES/R 137"2013-2014
  • SNOWMOBILE SKI-DOO Grand Touring 600 Sport ES/R L/C 136"2002-2003
  • SNOWMOBILE SKI-DOO Grand Touring 600 Sport REV-XP ES/R 137"2010-2012
  • SNOWMOBILE SKI-DOO GSX 500 Sport SS 1+1 REV ES/R 121"2004
  • SNOWMOBILE SKI-DOO GSX 500 Sport SS REV ES/R L/C 121"2004-2007
  • SNOWMOBILE SKI-DOO GSX 500 Sport SS REV-XP ES/R L/C 120"2008-2009
  • SNOWMOBILE SKI-DOO GSX 600 Sport REV-XP ES/R 120"2010
  • SNOWMOBILE SKI-DOO GTX 500 Sport SS Carb REV-XP ES/R L/C 137"2009
  • SNOWMOBILE SKI-DOO GTX 500 Sport SS REV ES/R L/C 136"2005-2008
  • SNOWMOBILE SKI-DOO Legend 500 GT Sport SS ES/R 136"2004
  • SNOWMOBILE SKI-DOO Legend 500 Sport ES/R L/C 121"2003
  • SNOWMOBILE SKI-DOO Legend 500 Sport RER L/C 121"2002
  • SNOWMOBILE SKI-DOO Legend 500 Sport SS ES/R 121"2004
  • SNOWMOBILE SKI-DOO Legend 600 GS ES/R L/C 121"2002
  • SNOWMOBILE SKI-DOO Legend 600 SE ES/R L/C 121"2002-2003
  • SNOWMOBILE SKI-DOO Legend 600 Sport ES/R L/C 121"2002-2003
  • SNOWMOBILE SKI-DOO MXZ 500 Adrenaline SS REV R L/C 121"2007
  • SNOWMOBILE SKI-DOO MXZ 500 TNT SS REV-XP R 120"2008-2009
  • SNOWMOBILE SKI-DOO MXZ 500 Trail SS REV R L/C 121"2007
  • SNOWMOBILE SKI-DOO MXZ 500 Trail SS REV-XP R 120"2008-2009
  • SNOWMOBILE SKI-DOO MXZ 600 Adrenaline L/C 121"2001
  • SNOWMOBILE SKI-DOO MXZ 600 Adrenaline R L/C 121"2002
  • SNOWMOBILE SKI-DOO MXZ 600 Blizzard e-tec REV-XS ES/R 129"2016-2017
  • SNOWMOBILE SKI-DOO MXZ 600 L/C 121"1999-2001
  • SNOWMOBILE SKI-DOO MXZ 600 Renegade R L/C 136"2002
  • SNOWMOBILE SKI-DOO MXZ 600 Special Config. 121"2000
  • SNOWMOBILE SKI-DOO MXZ 600 Sport Carb REV-XP ES/R 120"2018-2020
  • SNOWMOBILE SKI-DOO MXZ 600 Sport Carb REV-XP R 120"2010-2011, 2015-2017
  • SNOWMOBILE SKI-DOO MXZ 600 Sport L/C 121"2002
  • SNOWMOBILE SKI-DOO MXZ 600 Sport R L/C 121"2002
  • SNOWMOBILE SKI-DOO MXZ 600 Sport REV-XP R 120"2012-2014
  • SNOWMOBILE SKI-DOO MXZ 600 TNT Carb REV-XP R 120"2010
  • SNOWMOBILE SKI-DOO MXZ 600 TNT e-tec REV-XS ES/R 120"2016
  • SNOWMOBILE SKI-DOO MXZ 600 TNT e-tec REV-XS ES/R 129"2017
  • SNOWMOBILE SKI-DOO MXZ 600 TNT REV-XP R 120"2011-2012
  • SNOWMOBILE SKI-DOO MXZ 600 Trail L/C 121"2001-2003
  • SNOWMOBILE SKI-DOO MXZ 600 X e-tec REV-XS ES/R 129"2016-2017
  • SNOWMOBILE SKI-DOO MXZ 600 X L/C 121"2001-2002
  • SNOWMOBILE SKI-DOO MXZ 600 X R L/C2002
  • SNOWMOBILE SKI-DOO MXZ 600 X-RS e-tec REV-XS RS ES/R 129"2016
  • SNOWMOBILE SKI-DOO MXZ 600 X-RS Iron Dog e-tec REV-XS RS R 129"2017
  • SNOWMOBILE SKI-DOO MXZ 800 Blizzard e-tec REV-XS ES/R 129"2016-2017
  • SNOWMOBILE SKI-DOO MXZ 800 TNT e-tec REV-XS ES/R 120"2016
  • SNOWMOBILE SKI-DOO MXZ 800 X e-tec REV-XS ES/R 129"2016
  • SNOWMOBILE SKI-DOO MXZ 800 X-RS e-tec REV-XS RS ES/R 129"2017
  • SNOWMOBILE SKI-DOO MXZ 800 X-RS e-tec REV-XS RS R 129"2016
  • SNOWMOBILE SKI-DOO Renegade 600 Adrenaline e-tec REV-XS ES/R 137"2016-2017
  • SNOWMOBILE SKI-DOO Renegade 600 Backcountry e-tec REV-XM R 146"2016-2017
  • SNOWMOBILE SKI-DOO Renegade 600 Enduro e-tec REV-XS ES/R 137"2016-2017
  • SNOWMOBILE SKI-DOO Renegade 600 Sport carb REV-XP ES/R 137"2016-2020
  • SNOWMOBILE SKI-DOO Renegade 600 Sport carb REV-XP R 137"2015
  • SNOWMOBILE SKI-DOO Renegade 600 X e-tec REV-XS ES/R 137"2016-2017
  • SNOWMOBILE SKI-DOO Renegade 800 Adrenaline e-tec REV-XS ES/R 137"2016
  • SNOWMOBILE SKI-DOO Renegade 800 Backcountry e-tec REV-XM R 146"2016-2017
  • SNOWMOBILE SKI-DOO Renegade 800 Backcountry X e-tec REV-XM R 146"2016-2017
  • SNOWMOBILE SKI-DOO Renegade 800 Enduro e-tec REV-XS ES/R 137"2016-2017
  • SNOWMOBILE SKI-DOO Renegade 800 X e-tec REV-XS ES/R 137"2016
  • SNOWMOBILE SKI-DOO Renegade 800 X-RS e-tec REV-XS ES/R 137"2016-2017
  • SNOWMOBILE SKI-DOO Skandic 600 SUV ES/R 156"2003
  • SNOWMOBILE SKI-DOO Skandic 600 SUV ES/R L/C 156"2004-2007
  • SNOWMOBILE SKI-DOO Skandic 600 SUV Euro2009
  • SNOWMOBILE SKI-DOO Skandic 600 WT ES/R L/C 156"2001-2010
  • SNOWMOBILE SKI-DOO Summit 500SS Everest Carb REV-XP R 146"2009
  • SNOWMOBILE SKI-DOO Summit 600 CARB Sport p-tek REV-XP R 146"2010-2019
  • SNOWMOBILE SKI-DOO Summit 600 L/C 136"1999-2000
  • SNOWMOBILE SKI-DOO Summit 600 L/C 144"2001
  • SNOWMOBILE SKI-DOO Summit 600 SP e-tec REV-XM R 146"2016-2017
  • SNOWMOBILE SKI-DOO Summit 600 SP e-tec REV-XM R 154"2016-2017
  • SNOWMOBILE SKI-DOO Summit 600 Sport carb REV-XP R 146"2020
  • SNOWMOBILE SKI-DOO Summit 600 Sport L/C 144"2002
  • SNOWMOBILE SKI-DOO Summit 600 Sport R L/C 144"2002
  • SNOWMOBILE SKI-DOO Summit 800 Burton e-tec 2-up REV-XM R 154"2016-2017
  • SNOWMOBILE SKI-DOO Summit 800 SP e-tec REV-XM R 146"2016-2017
  • SNOWMOBILE SKI-DOO Summit 800 SP e-tec REV-XM R 154"2016-2017
  • SNOWMOBILE SKI-DOO Summit 800 SP e-tec REV-XM R 163"2016-2017
  • SNOWMOBILE SKI-DOO Summit 800 SP e-tec REV-XM R 174"2017
  • SNOWMOBILE SKI-DOO Summit 800 SP T-3 e-tec REV-XM R 154"2016
  • SNOWMOBILE SKI-DOO Summit 800 SP T-3 e-tec REV-XM R 163"2016
  • SNOWMOBILE SKI-DOO Summit 800 SP T-3 e-tec REV-XM R 174"2016
  • SNOWMOBILE SKI-DOO Summit 800 Sport carb REV-XP R 154"2016
  • SNOWMOBILE SKI-DOO Summit 800 X e-tec REV-XM R 174"2017
  • SNOWMOBILE SKI-DOO Summit 800 X T-3 e-tec REV-XM R 154"2016
  • SNOWMOBILE SKI-DOO Summit 800 X T-3 e-tec REV-XM R 163"2016
