DoubleTake Mirror Base Kit- Mirror (047515)

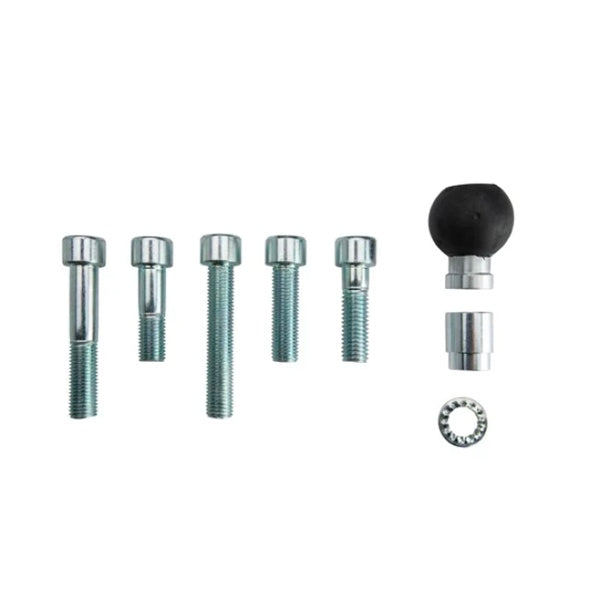

This Kit Includes:

1.125" Ball Stud, 10mm x 1.25 bolt long and short, 35MM Reverse Thread Bolt 10mm x 1.25, 55MM Reverse Thread Bolt 10mm x 1.25, 10mm x 1.5 short bolt (BMW), lock washer.

Technical Specs

• Weight ball only: 20 grams
• Weight ball kit: 230 grams
• Materials: Billet Aluminum, Nitrile, hardened Steel
• Diameter: 1.125” (29mm)
• Height: 1.37" (35mm)
• Extension: 0.78" (20mm)

Universal Fit. Every ball kit includes 5 bolts to allow fitment to any bike and eliminate unsightly adapters

• If you ride a pre-2005 BMW GS, you will need an 8mm kit. (Kimpex sku: 047516)
• If you ride a dirt bike with NO stock mirror, you need a mount.
• If you ride a 2019+ Triumph Scrambler, you need a TS Adapter. (Kimpex sku: 047521)

Larger size.Our ball is 1.125”, and even that small increase in diameter makes a big difference in rigidity. This means you don’t have to overtighten the arm to keep it from moving while riding.

Won't Crush.Our aluminum-filled base ball, coated with high-quality nitrile rubber won’t degrade under extended compression. You won’t have to repeatedly adjust your mirrors, because both ends of the system are designed to last.

Won't spin. We include a lock washer that secures the ball in relation to the bike..
