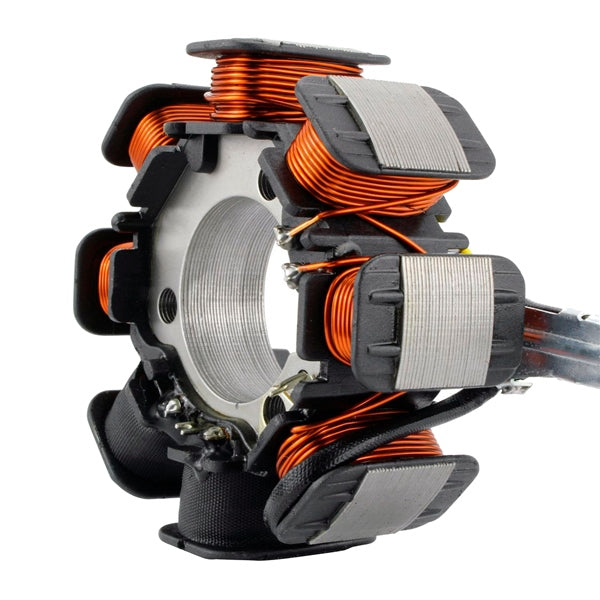

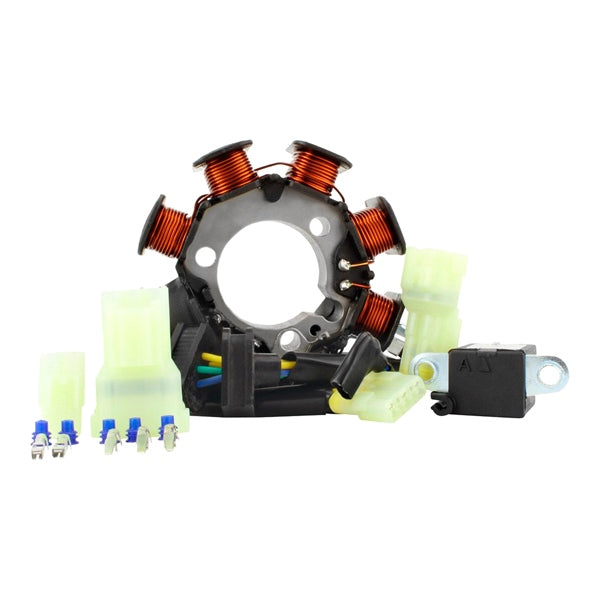

Kimpex HD Stator (225873)
Kimpex HD Stator (225873)
Kimpex HD Stator (225873)
Kimpex HD Stator (225873)
Kimpex HD Stator (225873)
Kimpex HD Stator (225873)
Kimpex HD

Kimpex HD Stator (225873)

At our supplier – 3 available
SKU: 225873
(0)
$250.99
  • Fast shipping across Canada
  • Free in-store pickup
  • Real mechanics answer
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Compatible Brand HONDA
Internal Diameter (mm) 35
External Diameter (mm) 88
Thickness (mm) 18
Number of wires 5
Number of connectors 2
Number of terminals 5
Notes 8-Poles Stator, Includes: Pick up pulsar
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included

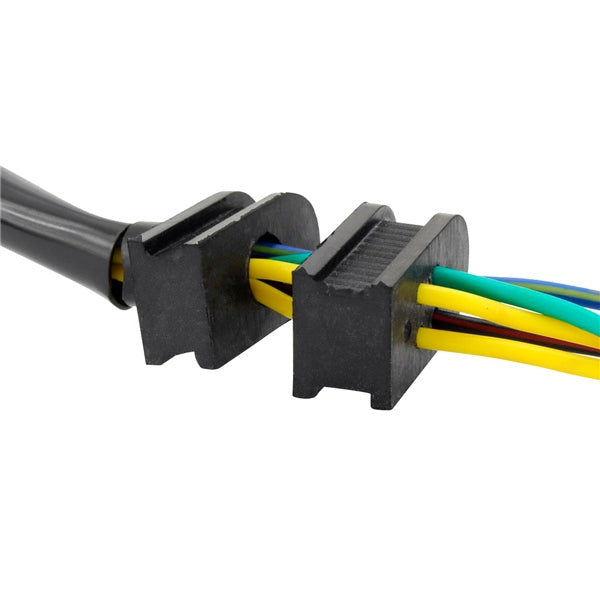

  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Vehicle Fitment

2 Vehicles
Type Make Model Year
  • ATV HONDA TRX250EX 2x4 Sportrax2006-2008
  • ATV HONDA TRX250X 2x42009, 2011-2014, 2016-2024
