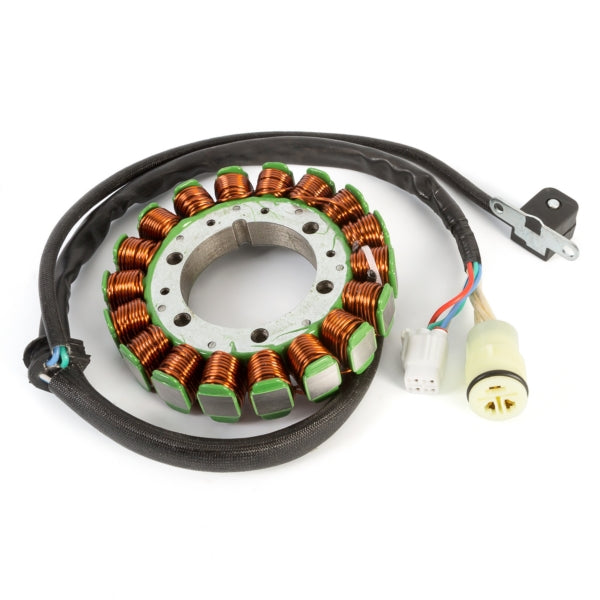

Kimpex HD Stator (285690)
Kimpex HD Stator (285690)
Kimpex HD Stator (285690)
Kimpex HD Stator (285690)
Kimpex HD

Kimpex HD Stator (285690)

Out of stock
SKU: 285690
(0)
$300.99
  • Fast shipping across Canada
  • Free in-store pickup
  • Real mechanics answer
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Compatible Brand YAMAHA
Internal Diameter (mm) 53
External Diameter (mm) 114
Thickness (mm) 35
Number of wires 7
Number of connectors 2
Number of terminals 7
Notes KN-147
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

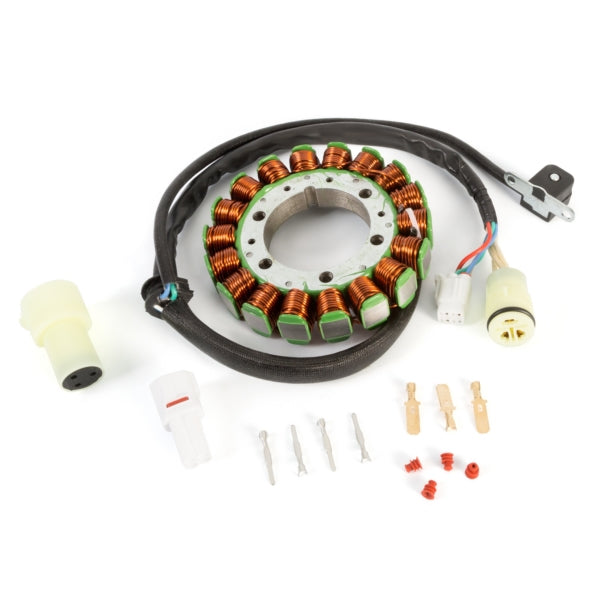

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Vehicle Fitment

11 Vehicles
Type Make Model Year
  • ATV YAMAHA Big Bear 350 SE2000
  • ATV YAMAHA Big Bear 400 2x42000-2004
  • ATV YAMAHA Big Bear 400 2x4 Hunter2001-2002
  • ATV YAMAHA Big Bear 400 4x42000-2002, 2006, 2008-2011
  • ATV YAMAHA Big Bear 400 4x4 Hunter2001-2002, 2007
  • ATV YAMAHA Big Bear 400 4x4 IRS2007
  • ATV YAMAHA Big Bear 400 Prof.2000, 2002-2005
  • ATV YAMAHA Raptor 3502004-2013
  • ATV YAMAHA Raptor 350 SE2005-2007
  • ATV YAMAHA Warrior 3502002-2004
  • ATV YAMAHA Wolverine 350 4x42002-2005
