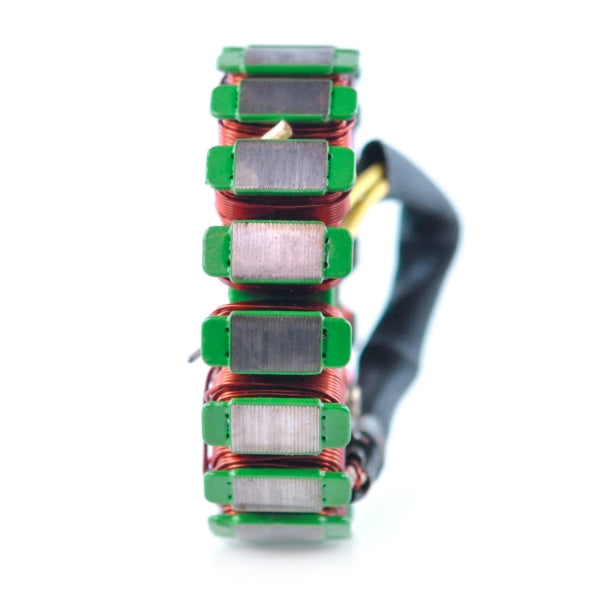

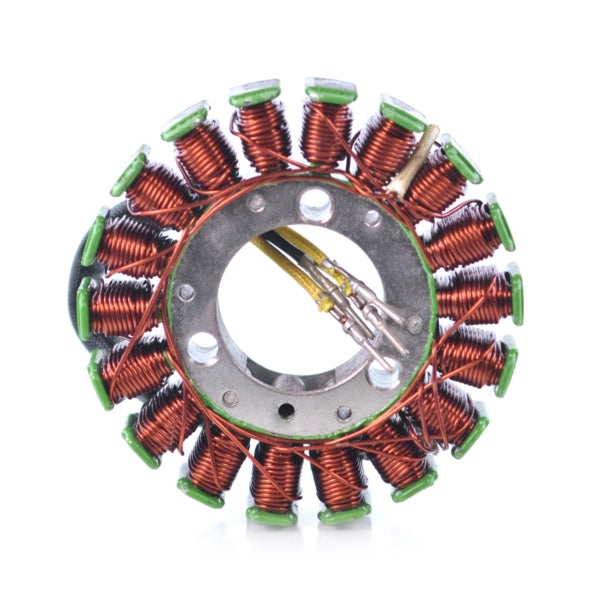

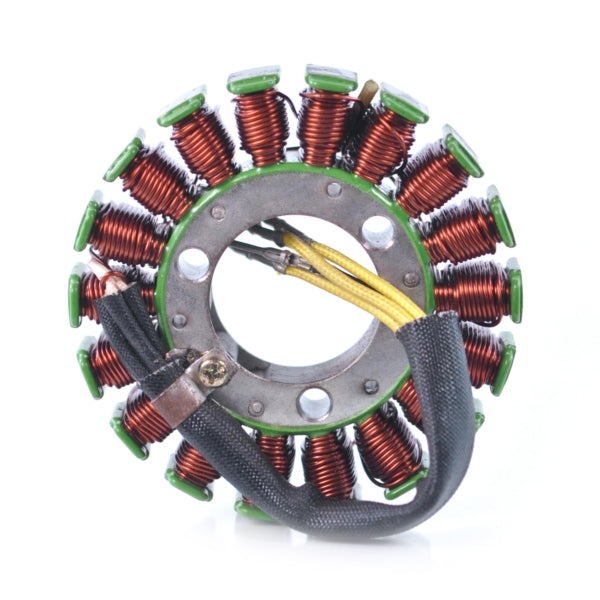

Kimpex HD Stator (289051)
Kimpex HD Stator (289051)
Kimpex HD Stator (289051)
Kimpex HD Stator (289051)
Kimpex HD Stator (289051)
Kimpex HD Stator (289051)
Kimpex HD

Kimpex HD Stator (289051)

Out of stock
SKU: 289051
(0)
$206.99
  • Fast shipping across Canada
  • Free in-store pickup
  • Real mechanics answer
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Compatible Brand SEA-DOO
Internal Diameter (mm) 35
External Diameter (mm) 93
Thickness (mm) 22
Number of wires 4
Number of connectors 1
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Vehicle Fitment

6 Vehicles
Type Make Model Year
  • PWC SEA-DOO 3D RFI 8002005
  • PWC SEA-DOO GSX RFI 8001999-2001
  • PWC SEA-DOO GTI LE 8002003-2004
  • PWC SEA-DOO GTI LE RFI 8002003-2005
  • PWC SEA-DOO GTI RFI 8002004-2005
  • PWC SEA-DOO GTX RFI 8001998-2002
