Home » Kimpex HD Stator (345184)

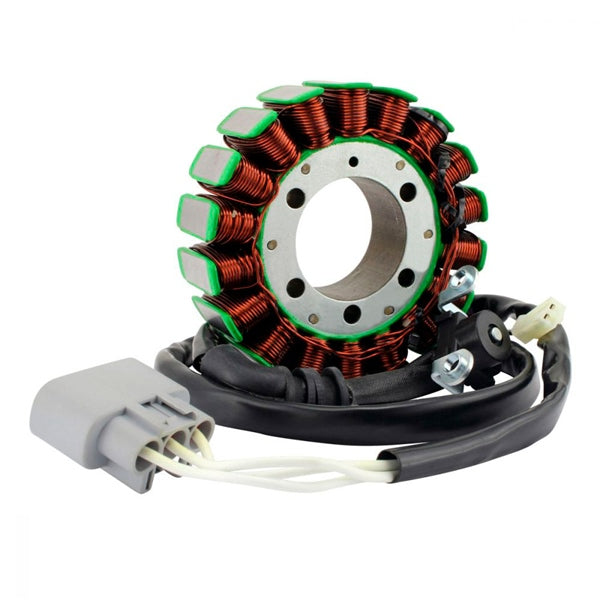

Kimpex HD Stator (345184)
Kimpex HD Stator (345184)
Kimpex HD

Kimpex HD Stator (345184)

Out of stock
SKU: 345184
(0)
$268.99
  • Fast shipping across Canada
  • Free in-store pickup
  • Real mechanics answer
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Compatible Brand YAMAHA
Internal Diameter (mm) 42
External Diameter (mm) 105
Thickness (mm) 27
Number of wires 5
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Vehicle Fitment

7 Vehicles
Type Make Model Year
  • — YAMAHA FJ09 900 ABS2015-2017
  • — YAMAHA FZ092014-2016
  • — YAMAHA FZ09A 900 ABS2017
  • — YAMAHA MT-09 ABS2018-2020
  • — YAMAHA Tracer 900 ABS2019-2020
  • — YAMAHA XSR 900 ABS2016-2021
  • — YAMAHA XSR 900 SE ABS2016
