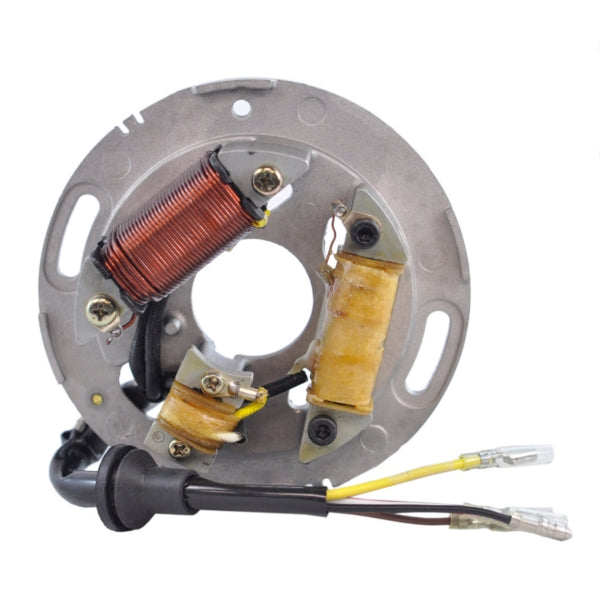

Kimpex HD Stator HD with a Backplate (201952)
Kimpex HD Stator HD with a Backplate (201952)
Kimpex HD

Kimpex HD Stator HD with a Backplate (201952)

Out of stock
SKU: 201952
(0)
$340.99
  • Fast shipping across Canada
  • Free in-store pickup
  • Real mechanics answer
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Compatible Brand YAMAHA
Internal Diameter (mm) 33
External Diameter (mm) 96
Thickness (mm) 21
Number of wires 4
Number of connectors 4
Number of terminals 4
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Backplate included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced..

Vehicle Fitment

5 Vehicles
Type Make Model Year
  • SNOWMOBILE YAMAHA Enticer 340 F/C 108,5"1984-1985
  • SNOWMOBILE YAMAHA Enticer 340 LT F/C 136"1984
  • SNOWMOBILE YAMAHA Enticer 340 Trapper F/C 136"1985
  • SNOWMOBILE YAMAHA Enticer LT 340 F/C1985-1986
  • SNOWMOBILE YAMAHA SRV 540 F/C 121"1985-1991
