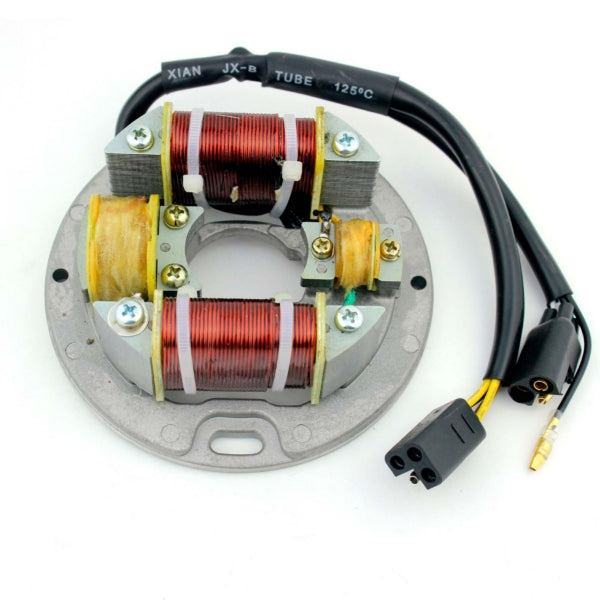

Kimpex HD Stator HD with a Backplate (280071)
Kimpex HD Stator HD with a Backplate (280071)
Kimpex HD

Kimpex HD Stator HD with a Backplate (280071)

Out of stock
SKU: 280071
(0)
$369.99
  • Fast shipping across Canada
  • Free in-store pickup
  • Real mechanics answer
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Compatible Brand ARCTIC CAT
Internal Diameter (mm) 38
External Diameter (mm) 101
Thickness (mm) 28
Number of wires 8
Number of connectors 3
Number of terminals 8
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Backplate included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced..

Vehicle Fitment

13 Vehicles
Type Make Model Year
  • SNOWMOBILE ARCTIC CAT Cheetah 440 L/C 156"1992-1993
  • SNOWMOBILE ARCTIC CAT Cougar 440 2-Up L/C 121"1991-1992
  • SNOWMOBILE ARCTIC CAT Cougar 440 L/C 121"1991-1994
  • SNOWMOBILE ARCTIC CAT Cougar 440 Mountain Cat L/C 136"1993-1994
  • SNOWMOBILE ARCTIC CAT Jag 440 L/C 121"1996
  • SNOWMOBILE ARCTIC CAT Pantera 440 L/C 136"1991-1992
  • SNOWMOBILE ARCTIC CAT Pantera 440 R L/C 121"1990
  • SNOWMOBILE ARCTIC CAT Panther 440 ES/R L/C 136"1996
  • SNOWMOBILE ARCTIC CAT Prowler 440 2-Up L/C 136"1991-1993
  • SNOWMOBILE ARCTIC CAT Prowler 440 L/C 121"1990-1993
  • SNOWMOBILE ARCTIC CAT Prowler 440 Mountain Cat L/C1992
  • SNOWMOBILE ARCTIC CAT Prowler 440 Mountain Cat L/C 136"1991
  • SNOWMOBILE ARCTIC CAT ZL 440 L/C 121"1997-2000
