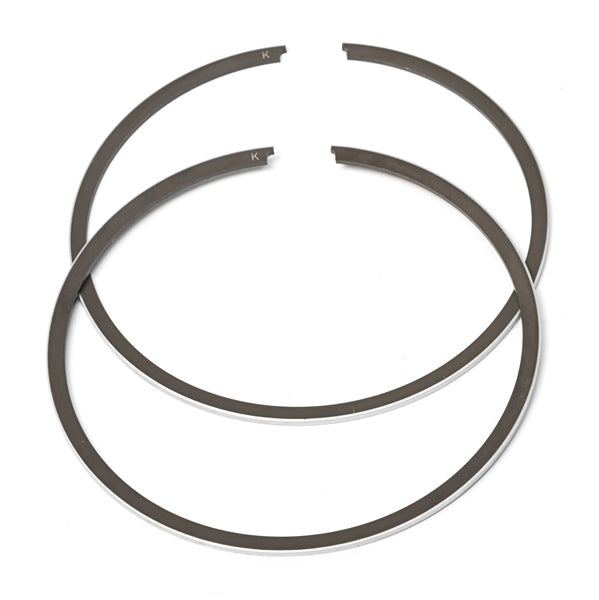

Kimpex Piston Replacement Ring Set (293905)
Kimpex Piston Replacement Ring Set (293905)
Kimpex Piston Replacement Ring Set (293905)
Kimpex Piston Replacement Ring Set (293905)
Kimpex

Kimpex Piston Replacement Ring Set (293905)

In stock - 10 items available
SKU: 293905
(0)
$31.99
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Piston and Ring Installation:
  • Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
  • Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
  • Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
  • Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
  • Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
  • Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.

Vehicle Fitment

113 Vehicles
Type Make Model Year
  • SNOWMOBILE ARCTIC CAT CFR800 128"2009-2011
  • SNOWMOBILE ARCTIC CAT CFR800 LTD 128"2009-2010
  • SNOWMOBILE ARCTIC CAT Crossfire 800 136"2007-2008
  • SNOWMOBILE ARCTIC CAT Crossfire 800 141"2009-2011
  • SNOWMOBILE ARCTIC CAT Crossfire 800 Sno Pro 136"2007-2008
  • SNOWMOBILE ARCTIC CAT Crossfire 800 Sno Pro 141"2009-2011
  • SNOWMOBILE ARCTIC CAT Crossfire 800 Sno Pro LTD 1.50 141"2011
  • SNOWMOBILE ARCTIC CAT Crossfire 800 Sno Pro LTD 141"2009-2010
  • SNOWMOBILE ARCTIC CAT Crossfire 800 Sno Pro LTD 2.25 141"2011
  • SNOWMOBILE ARCTIC CAT F8 128"2007-2010
  • SNOWMOBILE ARCTIC CAT F8 EXT ES 144"2011
  • SNOWMOBILE ARCTIC CAT F8 LXR ES 128"2007-2011
  • SNOWMOBILE ARCTIC CAT F8 LXR LTD ES 128"2009
  • SNOWMOBILE ARCTIC CAT F8 LXR Sno Pro LTD ES 128"2011
  • SNOWMOBILE ARCTIC CAT F8 Sno Pro 128"2007-2011
  • SNOWMOBILE ARCTIC CAT F8 Sno Pro LTD 128"2010
  • SNOWMOBILE ARCTIC CAT F8 Sno Pro Tony Stewart 128"2007
  • SNOWMOBILE ARCTIC CAT F800 LXR ES 128"2012
  • SNOWMOBILE ARCTIC CAT F800 LXR ES 129"2013
  • SNOWMOBILE ARCTIC CAT F800 Sno Pro 128"2012
  • SNOWMOBILE ARCTIC CAT F800 Sno Pro 129"2013
  • SNOWMOBILE ARCTIC CAT F800 Sno Pro LTD ES 129"2013
  • SNOWMOBILE ARCTIC CAT F800 Sno Pro RR 129"2013
  • SNOWMOBILE ARCTIC CAT King Cat 900 Carb 162"2004-2005
  • SNOWMOBILE ARCTIC CAT King Cat 900 EFI 162"2005-2006
  • SNOWMOBILE ARCTIC CAT M8 141"2007
  • SNOWMOBILE ARCTIC CAT M8 153"2007-2011
  • SNOWMOBILE ARCTIC CAT M8 162"2007-2009, 2011
  • SNOWMOBILE ARCTIC CAT M8 HCR 153"2009-2011
  • SNOWMOBILE ARCTIC CAT M8 Sno Pro 153"2007-2011
  • SNOWMOBILE ARCTIC CAT M8 Sno Pro 162"2009, 2011
  • SNOWMOBILE ARCTIC CAT M8 Sno Pro LTD 153"2009-2011
  • SNOWMOBILE ARCTIC CAT M800 153"2012-2013
  • SNOWMOBILE ARCTIC CAT M800 HCR 153"2012-2013
  • SNOWMOBILE ARCTIC CAT M800 Sno Pro 153"2012-2013
  • SNOWMOBILE ARCTIC CAT M800 Sno Pro 162"2012-2013
  • SNOWMOBILE ARCTIC CAT M800 Sno Pro LTD 153"2012-2013
  • SNOWMOBILE ARCTIC CAT M800 Sno Pro LTD 162"2013
  • SNOWMOBILE ARCTIC CAT M800 Sno Pro LTD ES 153"2013
  • SNOWMOBILE ARCTIC CAT M800 Sno Pro LTD ES 162"2013
  • SNOWMOBILE ARCTIC CAT M8000 153"2014-2015
  • SNOWMOBILE ARCTIC CAT M8000 David McClure LTD 153"2015
  • SNOWMOBILE ARCTIC CAT M8000 HCR 153"2014-2017
  • SNOWMOBILE ARCTIC CAT M8000 LTD 153"2015-2017
  • SNOWMOBILE ARCTIC CAT M8000 LTD 162"2015-2017
  • SNOWMOBILE ARCTIC CAT M8000 LTD ES 153"2015-2017
  • SNOWMOBILE ARCTIC CAT M8000 LTD ES 162"2015-2017
  • SNOWMOBILE ARCTIC CAT M8000 Mountain Cat 153"2017
  • SNOWMOBILE ARCTIC CAT M8000 Mountain Cat 162"2017
  • SNOWMOBILE ARCTIC CAT M8000 Mountain Cat ES 153"2017
  • SNOWMOBILE ARCTIC CAT M8000 Mountain Cat ES 162"2017
  • SNOWMOBILE ARCTIC CAT M8000 Rob Kincaid LTD 153"2015
  • SNOWMOBILE ARCTIC CAT M8000 SE 141"2016
  • SNOWMOBILE ARCTIC CAT M8000 SE 153"2016
  • SNOWMOBILE ARCTIC CAT M8000 SE ES 141"2016
  • SNOWMOBILE ARCTIC CAT M8000 SE ES 153"2016-2017
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro 141"2016
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro 153"2014-2017
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro 162"2014-2017
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro ES 141"2016-2017
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro ES 153"2016-2017
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro ES 162"2016-2017
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro LTD 153"2014
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro LTD 162"2014
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro LTD ES 153"2014
  • SNOWMOBILE ARCTIC CAT M8000 Sno Pro LTD ES 162"2014
  • SNOWMOBILE ARCTIC CAT Mountain Cat 900 1M Carb 159"2003
  • SNOWMOBILE ARCTIC CAT Mountain Cat 900 Carb 144"2003
  • SNOWMOBILE ARCTIC CAT Mountain Cat 900 Carb 151"2003-2004
  • SNOWMOBILE ARCTIC CAT Mountain Cat 900 Carb 159"2004
  • SNOWMOBILE ARCTIC CAT Mountain Cat 900 Carb Early Bird2003
  • SNOWMOBILE ARCTIC CAT Mountain Cat 900 EFI 151"2004
  • SNOWMOBILE ARCTIC CAT Mountain Cat 900 EFI 159"2004
  • SNOWMOBILE ARCTIC CAT XF800 CrossTour ES 141"2013
  • SNOWMOBILE ARCTIC CAT XF800 LXR ES 141"2012-2013
  • SNOWMOBILE ARCTIC CAT XF800 Sno Pro 141"2012-2013
  • SNOWMOBILE ARCTIC CAT XF800 Sno Pro High Country 141"2012-2013
  • SNOWMOBILE ARCTIC CAT XF800 Sno Pro High Country LTD ES 141"2013
  • SNOWMOBILE ARCTIC CAT XF800 Sno Pro LTD ES 141"2013
  • SNOWMOBILE ARCTIC CAT XF8000 Cross Country 141"2014-2015
  • SNOWMOBILE ARCTIC CAT XF8000 Cross Country LTD ES 137"2017
  • SNOWMOBILE ARCTIC CAT XF8000 Cross Country LTD ES 141"2015
  • SNOWMOBILE ARCTIC CAT XF8000 CrossTour ES 141"2014-2015
  • SNOWMOBILE ARCTIC CAT XF8000 CrossTrek ES 137"2016-2017
  • SNOWMOBILE ARCTIC CAT XF8000 High Country 141"2015-2017
  • SNOWMOBILE ARCTIC CAT XF8000 High Country LTD ES 141"2015-2017
  • SNOWMOBILE ARCTIC CAT XF8000 High Country LTD ES 153"2017
  • SNOWMOBILE ARCTIC CAT XF8000 High Country Sno Pro 141"2014
  • SNOWMOBILE ARCTIC CAT XF8000 High Country Sno Pro LTD ES 141"2014
  • SNOWMOBILE ARCTIC CAT XF8000 LTD ES 137"2015
  • SNOWMOBILE ARCTIC CAT XF8000 LXR ES 137"2014-2015
  • SNOWMOBILE ARCTIC CAT XF8000 Sno Pro 137"2014-2015
  • SNOWMOBILE ARCTIC CAT XF8000 Sno Pro LTD ES 137"2014
  • SNOWMOBILE ARCTIC CAT ZR 900 Carb 121"2003-2005
  • SNOWMOBILE ARCTIC CAT ZR 900 EFI 121"2004-2006
  • SNOWMOBILE ARCTIC CAT ZR 900 Sno Pro Carb 121"2003-2005
  • SNOWMOBILE ARCTIC CAT ZR 900 Sno Pro EFI 121"2004-2006
  • SNOWMOBILE ARCTIC CAT ZR8000 El Tigre ES 129"2015-2017
  • SNOWMOBILE ARCTIC CAT ZR8000 El Tigre ES 137"2017
  • SNOWMOBILE ARCTIC CAT ZR8000 LTD ES 129"2016-2017
  • SNOWMOBILE ARCTIC CAT ZR8000 LTD ES 137"2016-2017
  • SNOWMOBILE ARCTIC CAT ZR8000 LXR ES 129"2014-2017
  • SNOWMOBILE ARCTIC CAT ZR8000 LXR ES 137"2016-2017
  • SNOWMOBILE ARCTIC CAT ZR8000 RR 129"2015-2016
  • SNOWMOBILE ARCTIC CAT ZR8000 RR ES 129"2017
  • SNOWMOBILE ARCTIC CAT ZR8000 RR ES 137"2017
  • SNOWMOBILE ARCTIC CAT ZR8000 Sno Pro 129"2014-2016
  • SNOWMOBILE ARCTIC CAT ZR8000 Sno Pro 137"2016
  • SNOWMOBILE ARCTIC CAT ZR8000 Sno Pro ES 129"2017
  • SNOWMOBILE ARCTIC CAT ZR8000 Sno Pro ES 137"2017
  • SNOWMOBILE ARCTIC CAT ZR8000 Sno Pro LTD ES 129"2014
  • SNOWMOBILE ARCTIC CAT ZR8000 Sno Pro RR 129"2014
  • SNOWMOBILE ARCTIC CAT ZR9000 LTD 129"2015
