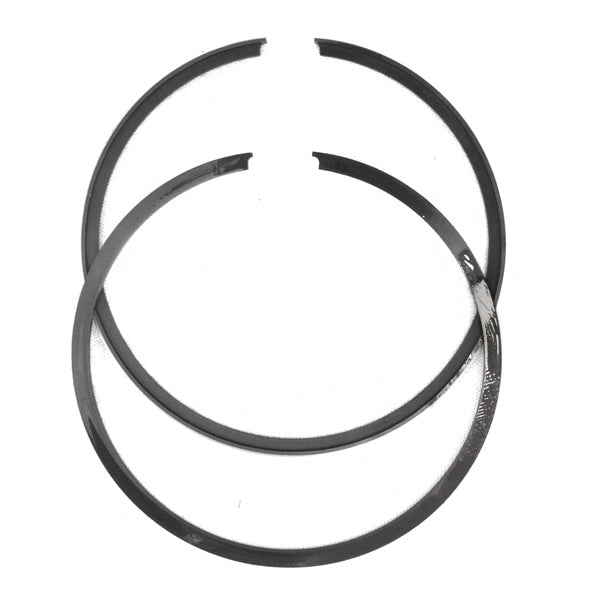

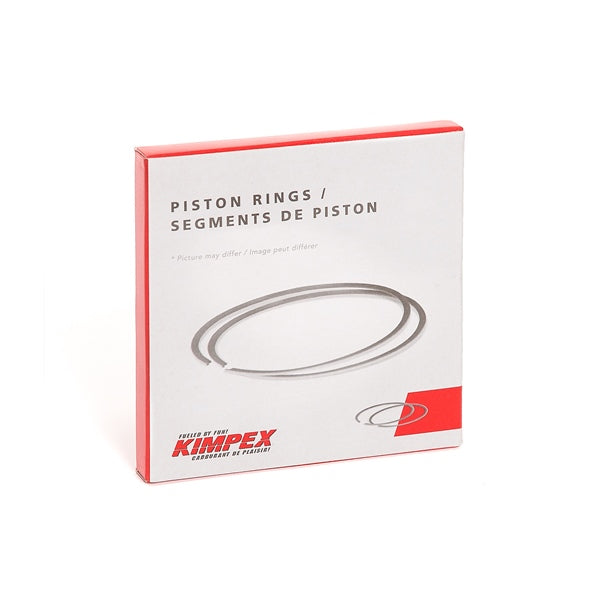

Kimpex Piston Replacement Ring Set (294037)
Kimpex Piston Replacement Ring Set (294037)
Kimpex Piston Replacement Ring Set (294037)
Kimpex Piston Replacement Ring Set (294037)
Kimpex

Kimpex Piston Replacement Ring Set (294037)

At our supplier – 10 available
SKU: 294037
(0)
$23.99
  • Fast shipping across Canada
  • Free in-store pickup
  • Real mechanics answer
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Compatible Brand MOTO-SKI, SKI-DOO
Displacement 462.8 cc
Bore - Standard 69.5 mm
Bore - Oversize 0.25 mm
Cylinders 2
Engine type 2-Strokes
Number R09-761-01
Piston and Ring Installation:
  • Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
  • Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
  • Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
  • Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
  • Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
  • Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.

Vehicle Fitment

37 Vehicles
Type Make Model Year
  • SNOWMOBILE MOTO-SKI Futura 444 L/C1979
  • SNOWMOBILE MOTO-SKI Futura 464 L/C1980-1982
  • SNOWMOBILE MOTO-SKI Sonic1984
  • SNOWMOBILE MOTO-SKI Ultra Sonic1984
  • SNOWMOBILE SKI-DOO Elite 444 E L/C 120"1980
  • SNOWMOBILE SKI-DOO Elite 444 L/C1978
  • SNOWMOBILE SKI-DOO Elite 454 L/C1979
  • SNOWMOBILE SKI-DOO Ellte 450 E L/C 120"1979
  • SNOWMOBILE SKI-DOO Everest 444 E L/C 124"1978-1979
  • SNOWMOBILE SKI-DOO Everest 464 E L/C 124"1980-1983
  • SNOWMOBILE SKI-DOO Formula MX 467 E L/C 121"1991
  • SNOWMOBILE SKI-DOO Formula MX 467 L/C 114"1985-1989
  • SNOWMOBILE SKI-DOO Formula MX 467 L/C 121"1990-1993
  • SNOWMOBILE SKI-DOO Formula MX 467 LT 2-Up L/C1990
  • SNOWMOBILE SKI-DOO Formula MX 467 LT L/C 124"1987-1989
  • SNOWMOBILE SKI-DOO Formula MX 467 LT L/C 138"1990
  • SNOWMOBILE SKI-DOO Formula MX 467 LT L/C High Altitude 124"1986
  • SNOWMOBILE SKI-DOO Formula MX 467 X L/C1991
  • SNOWMOBILE SKI-DOO Formula MX 467 XTC E L/C 138"1991
  • SNOWMOBILE SKI-DOO Formula MX 467 XTC E SS/SR L/C1991
  • SNOWMOBILE SKI-DOO Formula MX 467 XTC L/C 138"1991
  • SNOWMOBILE SKI-DOO Formula MX 467 XTC R L/C 138"1992-1993
  • SNOWMOBILE SKI-DOO Formula MX 467 XTC SS/SR L/C1991
  • SNOWMOBILE SKI-DOO Formula MX 470 L/C 121"1994-1995
  • SNOWMOBILE SKI-DOO Formula MX II 467 L/C 121"1993
  • SNOWMOBILE SKI-DOO Formula MXZ 467 L/C 121"1993
  • SNOWMOBILE SKI-DOO Formula MXZ 470 L/C 121"1994
  • SNOWMOBILE SKI-DOO Formula MXZ 470 X L/C1994
  • SNOWMOBILE SKI-DOO Formula SP 462 L/C 114"1985-1986
  • SNOWMOBILE SKI-DOO Formula SS 462 L/C 114"1985
  • SNOWMOBILE SKI-DOO Formula ST 470 F/C 121"1994
  • SNOWMOBILE SKI-DOO Grand Touring 470 ES/R L/C 136"1995
  • SNOWMOBILE SKI-DOO Safari GLX 467 L/C 124"1990-1992
  • SNOWMOBILE SKI-DOO Safari LC 467 L/C1990
  • SNOWMOBILE SKI-DOO Safari LCE 467 L/C 124"1991-1992
  • SNOWMOBILE SKI-DOO SS-25 462 L/C 114"1984
  • SNOWMOBILE SKI-DOO Summit 470 L/C 136"1994
