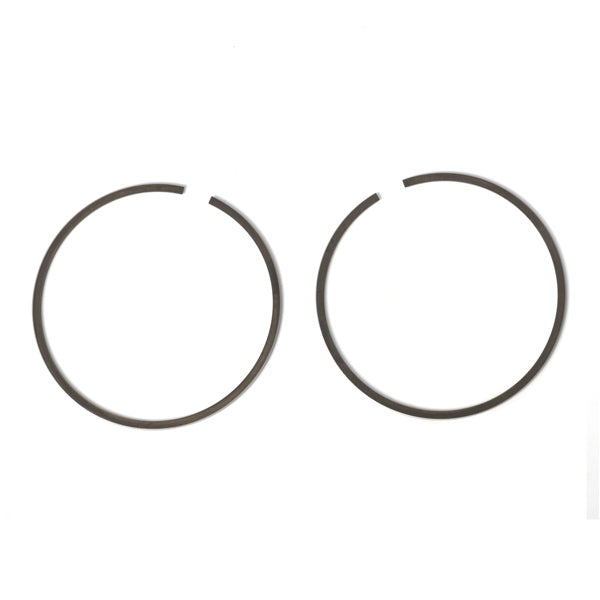

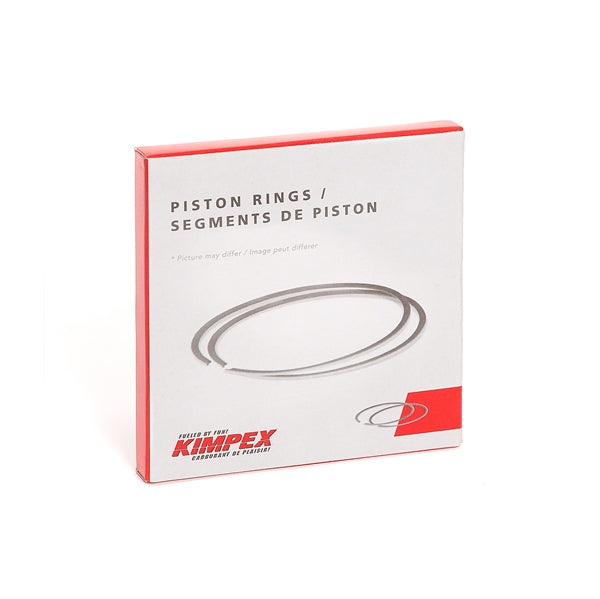

Kimpex Piston Replacement Ring Set (904191)
Regular price
$32.99
Couldn't load pickup availability
Piston and Ring Installation:
- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
Vehicle Fitment
47 Vehicles
Type
Make
Model
Year
- SNOWMOBILE SKI-DOO Expedition 550 Sport REV R F/C 136"2005-2006
- SNOWMOBILE SKI-DOO Expedition 550 Sport REV-XP ES/R F/C 154"2012-2020
- SNOWMOBILE SKI-DOO Expedition 550 Sport REV-XU ES/R F/C 154"2011
- SNOWMOBILE SKI-DOO Expedition 550 Sport RF ES/R F/C 136"2007-2008
- SNOWMOBILE SKI-DOO Freestyle Back Country 550 RF R F/C 136"2007-2009
- SNOWMOBILE SKI-DOO Freestyle Park 550 RF R F/C 121"2007-2008
- SNOWMOBILE SKI-DOO Freestyle Session 550 RF R F/C 121"2007
- SNOWMOBILE SKI-DOO Grand Touring 550 ES/R F/C 136"2003
- SNOWMOBILE SKI-DOO Grand Touring 550 Sport REV-XP ES/R F/C 137"2010-2015
- SNOWMOBILE SKI-DOO GSX 550 REV ES/R F/C 121"2005-2009
- SNOWMOBILE SKI-DOO GSX 550 Sport REV-XP ES/R F/C 120"2010
- SNOWMOBILE SKI-DOO GTX 550 REV ES/R F/C 136"2005-2009
- SNOWMOBILE SKI-DOO Legend 550 ES/R F/C 121"2003-2004
- SNOWMOBILE SKI-DOO Legend 550 GT ES/R F/C 121"2004
- SNOWMOBILE SKI-DOO MXZ 550 R F/C 121"2003-2004
- SNOWMOBILE SKI-DOO MXZ 550 REV R F/C 121"2005-2008
- SNOWMOBILE SKI-DOO MXZ 550 Sport REV-XP R F/C 120"2011-2014
- SNOWMOBILE SKI-DOO MXZ 550 TNT REV-XP R F/C 120"2010-2012
- SNOWMOBILE SKI-DOO MXZ 550 X REV R F/C 121"2006-2009
- SNOWMOBILE SKI-DOO Renegade 550 Sport REV-XP R F/C 137"2010-2014
- SNOWMOBILE SKI-DOO Skandic 500 WT2015
- SNOWMOBILE SKI-DOO Skandic 550 REV-XU F/C2018
- SNOWMOBILE SKI-DOO Skandic 550 Sport R F/C 136"2004
- SNOWMOBILE SKI-DOO Skandic 550 SUV ES/R F/C 156"2004-2010
- SNOWMOBILE SKI-DOO Skandic 550 SWT 2-Stroke2017
- SNOWMOBILE SKI-DOO Skandic 550 SWT ES/R F/C 156"2004-2008
- SNOWMOBILE SKI-DOO Skandic 550 SWT REV-XU F/C2018
- SNOWMOBILE SKI-DOO Skandic 550 SWT REV-XU F/C EURO2014-2015
- SNOWMOBILE SKI-DOO Skandic 550 Tundra LT REV-XU ES/R F/C 154"2010-2013
- SNOWMOBILE SKI-DOO Skandic 550 Tundra LT RF ES/R F/C 154"2008-2009
- SNOWMOBILE SKI-DOO Skandic 550 Tundra REV-XU ES F/C 137"2010-2012
- SNOWMOBILE SKI-DOO Skandic 550 Tundra Sport REV-XU ES/R F/C 137"2010-2013
- SNOWMOBILE SKI-DOO Skandic 550 WT ES/R F/C 154"2012
- SNOWMOBILE SKI-DOO Skandic 550 WT ES/R F/C 156"2004-2011
- SNOWMOBILE SKI-DOO Skandic 550 WT REV-XU ES/R 154"2018-2019
- SNOWMOBILE SKI-DOO Skandic 550 WT REV-XU ES/R F/C 154"2013-2017, 2020
- SNOWMOBILE SKI-DOO Skandic 600 SWT e-tec REV-XU ES/R 156"2016-2017
- SNOWMOBILE SKI-DOO Skandic 600 WT e-tec REV-XU ES/R 154"2016-2017
- SNOWMOBILE SKI-DOO Summit 550 R F/C 136"2003-2004
- SNOWMOBILE SKI-DOO Summit 550 REV R F/C 136"2005-2009
- SNOWMOBILE SKI-DOO Tundra 550 LT REV-XU ES/R F/C 154"2014-2020
- SNOWMOBILE SKI-DOO Tundra 550 LT XP F/C Euro2014
- SNOWMOBILE SKI-DOO Tundra 550 Sport REV-XU ES/R F/C 137"2014-2020
- SNOWMOBILE SKI-DOO Tundra 550 Sport XP F/C Euro2014
- SNOWMOBILE SKI-DOO Tundra 550 WT F/C2018
- SNOWMOBILE SKI-DOO Tundra 550 WT RER-XU F/C EURO2014-2015
- SNOWMOBILE SKI-DOO Tundra WT 2-Stroke Euro2017
